先週、まずは、第1回目のサーフェイサー塗装が終わりました。今回はディテールを彫るところまで進めています。
First of all, the 1st surfacer paint finished
last week. It is advancing till the place
which carves a detail this time. |
|
|
やはり、こうしてみると10数カ所に凹みなどがありました。全てプラパテなどで充填しておきます。
しかし、今回はエポキシパテで造形したので、「気泡」の類は発生していません。かなり作業としては楽になっています。
Too, when seen in this way, the dent etc.
was in about ten places. All are filled up
with plastic putty etc.
However, since it molded by the epoxy putty
this time, the kind of "air bubbles"
has not been generated. As work, it is easy
considerably.
|
|
|
左は以前にレストアしようとしたキット(製作は1982年)です。このように下部のダクトのパーツが艦体と密着しているのが気になります。
プラバンでパーツを延長して、このように開口部を広めに確保する予定です。
The left is the kit (manufacture is 1982)
which was going to carry out the assembly
again before. Thus, it is worrisome that
the part of a lower duct has stuck with the
hull.
A opening is due to extend a part by the
plastic board and to be secured width in
this way. |
|
|
主砲に関しては、ほぼオリジナルパーツを活かします。砲室の底には、プラバンで蓋をします。そして、砲身はやはり真鍮製品を流用します。「帝國海軍の36サンチ砲」を使用。
About a Main Gun, an original part is harnessed
mostly. The bottom of a gun room is covered
by the plastic board. And a barrel diverts
a brassware product too. "36 Santee
gun of the imperial navy" is used. |
|
|
プラパイプをこのように接着し、砲身と砲室の接続点を確保しておきます。
A plastic pipe is pasted up in this way and
the connecting point of a barrel and a gun
room is secured.
|
|
さて……艦体の「紋章」は削り落としてしまいました。ここは、もう少し栄えるように加工してみます。
now, .... it has been failed to shave the
"emblem" of a hull Process it here
so that it may prosper to a slight degree.
|
|
|
しかし、完全自作は技術不足です。何かを流用することで対処します。候補は、「食玩」の「アルカディア号」の艦首部分と、あとは……いつも身につけている指輪です(⌒▽⌒シリアルナンバーは517/999)。
However, making himself completely is technically
impossible. It is coped with by utilizing
something. A candidate is the Bow portion
of the "Arcadia" of "the miniature
of a ready-made article", and the back....
It is the always put-on ring ( ⌒▽⌒ serial
number is 517/999). |
|
|
大きさと、形状のバランスから、「フルタ」のものに決定。早速シリコンゴムの型を造る準備をはじめます。
It is decided from a size and the balance
of form that it will be the thing of "Furuta."
The preparation which builds the model of
silicone rubber instantly is begun. |
|
|
複製製作の作業は5〜6時間かかりました。なんとか複製に成功。しかし、このままでは、艦体に接着できません。余分なプラを削り落とす作業を行います。
The work of duplicate manufacture took 5
to 6 hours. It succeeds in a duplicate somehow.
However, a hull cannot be pasted with this.
The work which fails to delete an excessive
portion is done. |
|
パテで補修した後で、また耐水ペーパーで表面処理の作業を行いました。これで装甲などのスジボリを施します。
After repairing with putty, the surface treatment
was worked by the waterproof paper. Panel
lines, such as armoring, are carved now.
|
|
|
|
|
マスキングテープをガイドとして、既成のものを更に深く彫ります。
そして、新規の部分も多数ありますから……かなり緊張する場面です。
この作業は、まだしばらく時間を要します。
An established thing is carved still more
deeply by considering a masking tape as a
guide.
Since there is a place into which it sculptures
newly in addition to them considerably, troubles
are suffered.
This work still requires time for a while.
|
|

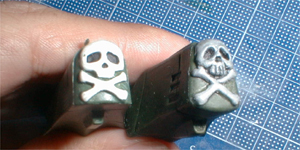

艦体に「不滅の紋章」を接着……。
キットのそのままの状態より、より荒々しく再現できたのではないかと思います。
作業している時間は、BGMはずっと「新ハーロック」のサントラです。以前に造っていたモデルの出来は、さきほどの写真を見てもらえば解るとおり、無様なものでした。
この「紋章」に魅入られて25年……あの頃よりは、マシなものが造ることが出来るようになったようです。
まだ、ほんの少し、ですが(^^;;
An "eternal emblem" is pasted up
on a hull ....
I think that it will have reappeared more
violently than the state as it is of a kit.
BGM of the time which is working is the sound
track of a "new Herlock" all the
time. The result of the model which was being
built before was a severe result as it was
known, if I had a previous photograph seen.
This "emblem" was fascinated and
25 years passed.... What was able to improve
can be built now rather than that time.
Mere a few still (^^;; |
|
